Databricks

Databricks is a commercial solution called a lakehouse (combination of data lake and data warehouse). Mostly known for:

  • separating storage and compute
  • storage:
    • data lake:
      • can easily store raw data (any kind of file)
      • uses cloud object/blob storage, so it is cheap even for big data
    • data warehouse:
      • holds structured data (primarily in delta tables)
  • compute:
    • queries are possible in SQL and Python (lazy DataFrame)
    • Databricks prepares clusters for you
    • there is an option for serverless compute (can be tricky to manage costs)

Control plane (orchestration) and data plane (your data) are separated. So your data are stored in your cloud and Databricks only manages metadata and compute, but cluster itself runs in your cloud account too.

Jobs (workflows): automate data pipelines. Lakeflow connect: integrates with various data sources (files, cloud storage, Kafka, etc.). Supports batch, incremental, and streaming modes.

Your data are organized in workspace. Main entities in workspace are:

  • notebooks: interactive code cells, syntax: Python, SQL, Markdown
  • jobs: workflows, there are divided into tasks.
  • tables: structured data

Unity catalog and privileges

Centralized data governance and access control.

DBX Roles:

  • account admin: manage metastore, workspaces and users
  • metastore admin: create catalogs, manage data object
  • workspace admin
  • owner: table, schema, function

Control plane: store metadata, provided by DBX Data plane: store data, managed by user (cloud storage like S3, ADLS, GCS)

3 namespace: <catalog>.<schema>.<table>

To access a specific table, the user must be granted SELECT on the table itself, USE SCHEMA on the containing schema, and USE CATALOG on the parent catalog. This provides just enough access for read operations without overprovisioning.

Catalog Explorer: web UI for browsing catalogs, schemas, tables, and views.

Delta sharing

A Delta Sharing identifier is a unique string used in Databricks-to-Databricks sharing to identify a recipient's Unity Catalog metastore. This identifier allows the data provider to grant access to shared data.

The format of the sharing identifier is: <cloud>:<region>:<uuid>

Example: aws:us-west-2:19a84bee-54bc-43a2-87de-023d0ec16016

In this example:

  • aws: represents the cloud provider (Amazon Web Services).
  • us-west-2: represents the specific AWS region.
  • 19a84bee-54bc-43a2-87de-023d0ec16016: is the Universally Unique Identifier (UUID) of the recipient's Unity Catalog metastore.

Recipients can obtain their sharing identifier from their Databricks workspace using Catalog Explorer or by running a SQL query like SELECT CURRENT_METASTORE();. This identifier is then provided to the data provider, who uses it to create a recipient and grant access to shares.

DevOps

Assets bundle (DAB)

Databricks Assets Bundles (DABs):

  • code in yaml
  • exact definition of Databricks resources
# databricks.yml

bundle:
  name: <name>

include:
  - resources/*.yml

targets:
  dev:
    mode: development
    default: true
    workspace:
      host: {{workspace_host}}
  prd:
    mode: production
    workspace:
      host: {{workspace_host}}

resources:
    jobs:

Git

Version control for notebooks and code. Cannot delete branch.

1. Work Distribution (Orchestration)

Job (Workflow): The unit of orchestration. It is a scheduled workload that defines WHO (cluster), WHEN (schedule/trigger), and WHAT (list of tasks).

Usage: typically used to run production ETL pipelines (e.g., nightly batch).

Task: A specific step within a Job.

  • Tasks form a DAG (Directed Acyclic Graph) to define dependencies (e.g., Task B runs only after Task A succeeds).

  • Task Types:

  • Notebook Task: Executes a standard notebook (Imperative).

  • DLT Pipeline Task: Triggers a DLT pipeline update (Declarative).

liquid clustering: Predictive optimization that automatically optimizes data layout based on query patterns. So your data is organized in a way that speeds up your queries.

2. Development Methodology (Notebook vs. DLT)

Notebook (Imperative)

You must define the process. You are responsible for managing state, checkpoints, and schema enforcement manually.

# Notebook: You manage the "How"
# 1. Define Checkpoint (Critical manual step)
checkpoint_path = "/mnt/checkpoints/users_bronze"

# 2. Read Stream
df = spark.readStream.load("/mnt/source/users")

# 3. Write Stream (Explicit write command)
(df.writeStream
    .format("delta")
    .option("checkpointLocation", checkpoint_path) # Manual state management
    .toTable("bronze_users")
)

Delta Live Tables - DLT (Declarative)

You define the target state. The framework automatically handles infrastructure, checkpoints, lineage, and data quality.

# DLT: You define the "What"
import dlt

# 1. Define the target table
@dlt.table(
    name="bronze_users",
    comment="Raw user data"
)
def ingest_users():
    # 2. Return the transformation (No write command, no manual checkpoint)
    return spark.readStream.load("/mnt/source/users")

Delta Live Tables (DLT) has been recently renammed to Lakeflow Declarative Pipeline,

noteebook vs Delta Live Table

DLT are declarative and mask complexity about autoloader.

notebook
source_path = "/Volumes/my_catalog/my_schema/inbox/users.csv"

df = spark.read.format("csv") \
    .option("header", "true") \
    .load(source_path)

df.write.format("delta") \
    .mode("append") \
    .saveAsTable("my_catalog.my_schema.bronze_users")
DLT
import dlt

@dlt.table(
     name="bronze_users",
     comment="Raw data from CSV loaded incrementally"
)
def ingest_users():
    """
    Read all what will be in the folder
    Use Auto Loader
    """
    return (
        spark.readStream.format("cloudFiles")
        .option("cloudFiles.format", "csv")
        .load("/Volumes/my_catalog/my_schema/inbox/")
    )

3. Structured Streaming (Processing Engine)

The core engine for processing data. It processes data in Micro-batches. It is used inside both Notebooks and DLT.

Trigger Modes (Execution Frequency)

A) Triggered (Batch Mode)

  • Config: .trigger(availableNow=True)
  • Behavior: Processes all available data since the last run, then stops the cluster.
  • Use Case: Cost-effective periodic jobs (e.g., Daily ETL).
# Process everything available, then shut down
df.writeStream \
  .trigger(availableNow=True) \
  .toTable("target_table")

B) Continuous (Micro-batch Loop)

  • Config: .trigger(processingTime="10 seconds")
  • Behavior: Runs in a loop. Checks for data every 10 seconds. If the previous batch finished early, it waits. If it took longer, it starts immediately. The cluster runs 24/7.
  • Use Case: Low-latency requirements (near real-time).
# Check for data every 10 seconds indefinitely
df.writeStream \
  .trigger(processingTime="10 seconds") \
  .toTable("target_table")

4. Auto Loader (Ingestion Tool)

A specific source for Structured Streaming optimized for file ingestion from cloud storage (S3/ADLS).

  • Identifier: format("cloudFiles")
  • Function: Efficiently detects new files without listing the entire directory.
# Usage within a Stream (works in both Notebooks and DLT)
df = (spark.readStream
      .format("cloudFiles")           # Activates Auto Loader
      .option("cloudFiles.format", "csv")
      .load("/mnt/source/incoming_files/")
)

CREATE OR REFRESH STREAMING TABLE  my_table_name
SCHEDULE EVERY 1 WEEK             -- refresh/update period
AS
SELECT *
FROM STREAM read_files(
  '/volumes/project/my_streaming' -- path to your files
  format => 'CSV',
  sep => '|',
  header => true
);

spark
.readStream.format("cloudFiles")
  .option("cloudFiles.format", "json")
  .option("cloudFiles.schemaLocation", "<checkpoint_path>")
  .load("/volumes/project/my_streaming")
.writeStream
  .option("checkpointLocation", "<checkpoint_path>")
  .trigger(processingTime="5 seconds")
  .toTable("my_table_name"

Force refresh: REFRESH STREAMING TABLE my_table_name

By default, if you don’t provide any trigger interval, the data will be processed every half second. This is equivalent to trigger(processingTime=”500ms")

Notebooks

DBX contains interactive notebooks:

  • Markdown, SQL, python cells, start your cell with %md, %sql, %python to change it
  • Also you can use %run /path/to/other/notebook to include another notebook
  • Or %fs ls '/dir'
  • predefined variables:
  • dbutils: utilities for file system, secrets, widgets, etc., for example dbutils.fs.ls('/mnt/data'). dbutils.help() for more info.
  • spark: SparkSession
  • sqlContext: SQL context
  • predefined function:
  • display(): display DataFrame or visualization
  • displayHTML(): render HTML content
  • spark.read and spark.write: read and write data
  • contains interative debugger
  • variable explorer
  • version history
  • limit for output is 30 MB

Databricks Connect is a client library for the Databricks Runtime that allows you to connect popular IDEs.

Metadata and schema mismatches

During ingestion you can apply various metadata: _metadata.file_modification_time _metadata.file_name

And handle schema mismatches: _rescued_data

Ingestion into existing table: MERGE INTO (upsert), various strategy. God for slowly chaging dimensions (SCDs), incremental loads, and complex change data capture (CDC).

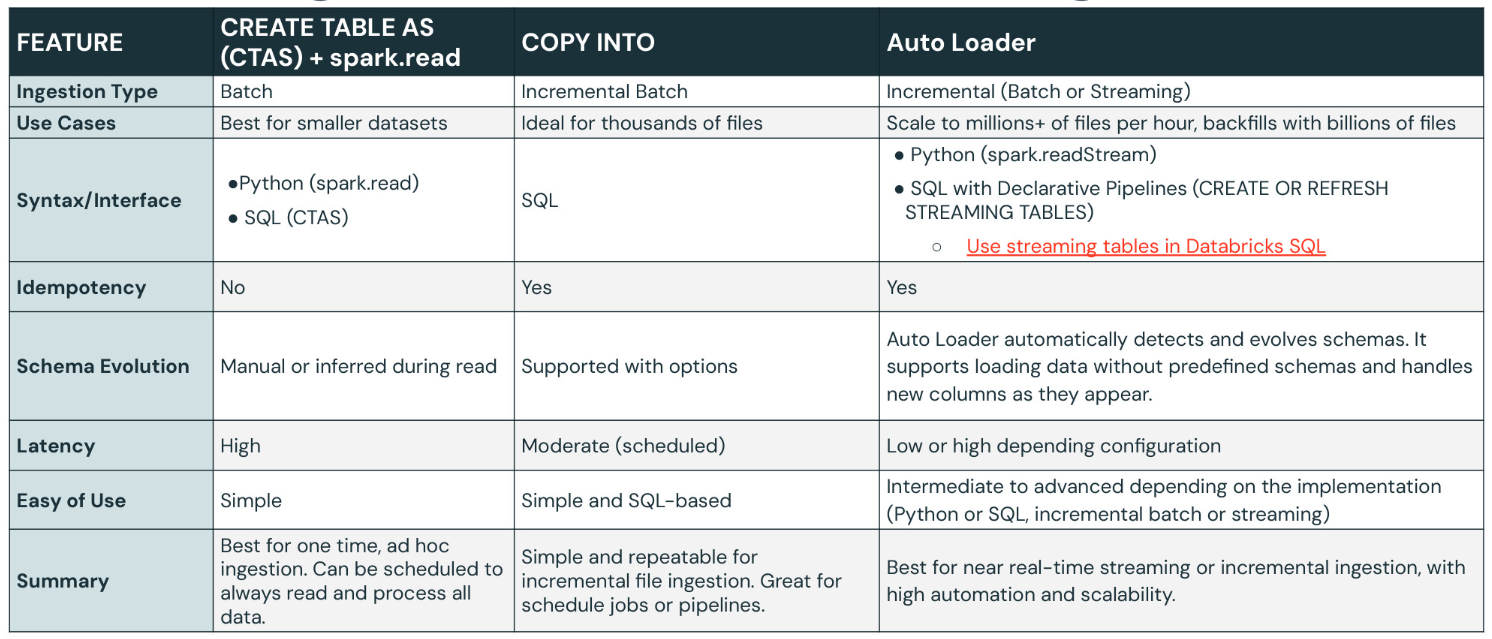

Comparasion

tables

Managed tables: Databricks-managed storage. External tables: data stored outside Databricks (e.g., cloud storage).

Datatypes

STREAMING TABLE:

  • support fot batch or streaming for incremental data processing.
  • each time an streaming table is refreshed, it processes only new data since the last refresh.
  • create SQL: CREATE OR REFRESH STREAMING TABLE
  • In SQL you must to use FROM STREAM read_files() to invoke Auto Loader functionality for incremental streaming reads and checkpoints

MATERIALIZED VIEW (MV):

  • Each time a materialized view is updated, query results are recalculated to reflect changes in upstream datasets
  • Created and kept up-to-date by pipeline
  • Use the CREATE OR REFRESH MATERIALIZED VIEW syntax
  • Can be used anywhere in your pipeline, not just in the gold layer
  • Where applicable, results are incrementally refreshed for materialized views, avoiding the need to completely rebuild the materialized view when new data arrives (Serverkess Only)
  • Incremental refresh for materialized views is a cost-based optimizer, to power fast and efficient transformations for materialized views on Serveless compute

VIEWS:

TEMPORARY VIEW:

  • temporary views are only persisted acriss the lifetime of the pipeline and private to the defining pipeline
  • they are not registered as an object to Unity Catalog
  • Use the CREATE TEMPORARY VIEW statement
  • TM are useful as intermediate queries that are not exposed to end users

VIEW:

  • no physial data
  • they are registered as an object to Unity Catalog
  • Use the CREATE VIEW statement

Limitations of views:

  • the pipeline must be a Unity Catalog pipeline
  • views cannot have streaming queries, or be used as a streaming source

CONSTRAINTS

Levels: WARN default, row is written but a warning is logged DROP row is dropped FAIL entire transaction fails

CREATE OR REFRESH STREAMING TABLE silver_db.orders_silver
(
CONSTRAINT valid_notify EXPECT (notifications IN ('Y', 'N')),
CONSTRAINT valid_id EXPECT (order_id IS NOT NULL) ON VIOLATION DROP ROW,
CONSTRAINT valid_date EXPECT (order_timestamp > "2021-01-01" ON VIOLATION FAIL UPDATE
)
AS SELECT ...

JOINS

streaming table -> joined streaming table <- static table
streaming table -> materialized view <- streaming table

CDC

Change data capture (CDC) is supported natively in Databricks Delta Lake. There are

TYPE 1: just overwrite old data with new data (no history) TYPE 2: keep history by adding new records with timerange when they are valid

APPLY CHANGES INTO

CREATE OR REFRESH STREAMING TABLE customers;

CREATE FLOW scd_type_1_flow AS
AUTO CDC INTO customers
    FROM STREAM updates
    KEYS (CustomerID)
    APPLY AS DELETE WHEN operation = "delete"
    SEQUENCE BY ProcessDate
    COLUMNS * EXCEPT (operation)
    STORED AS SCD TYPE 1;

There is also Change Data Feed (CDF) for tracking changes over time (notifiy).

4. Sources

https://airflow.apache.org/ https://www.dask.org/
